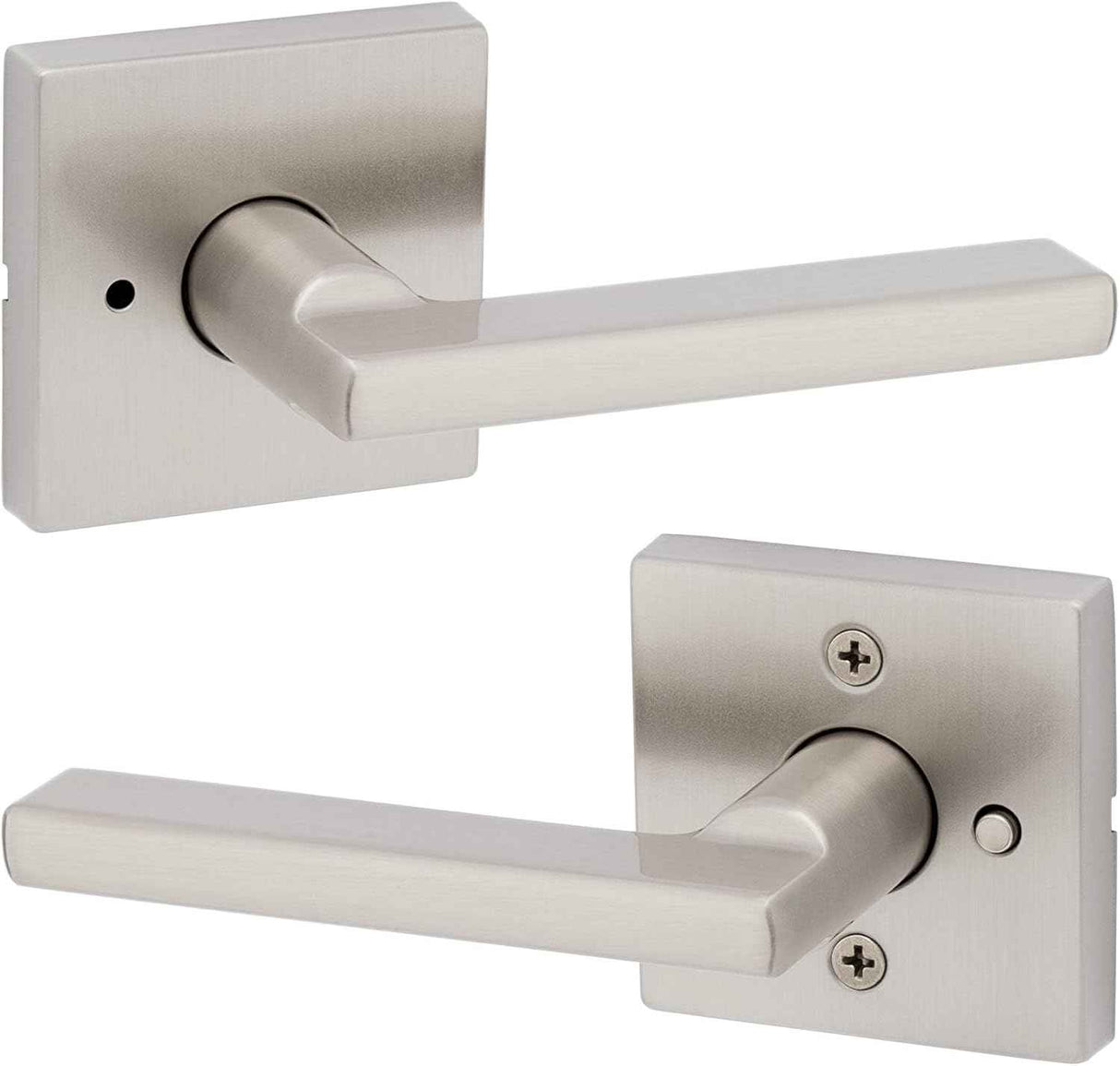

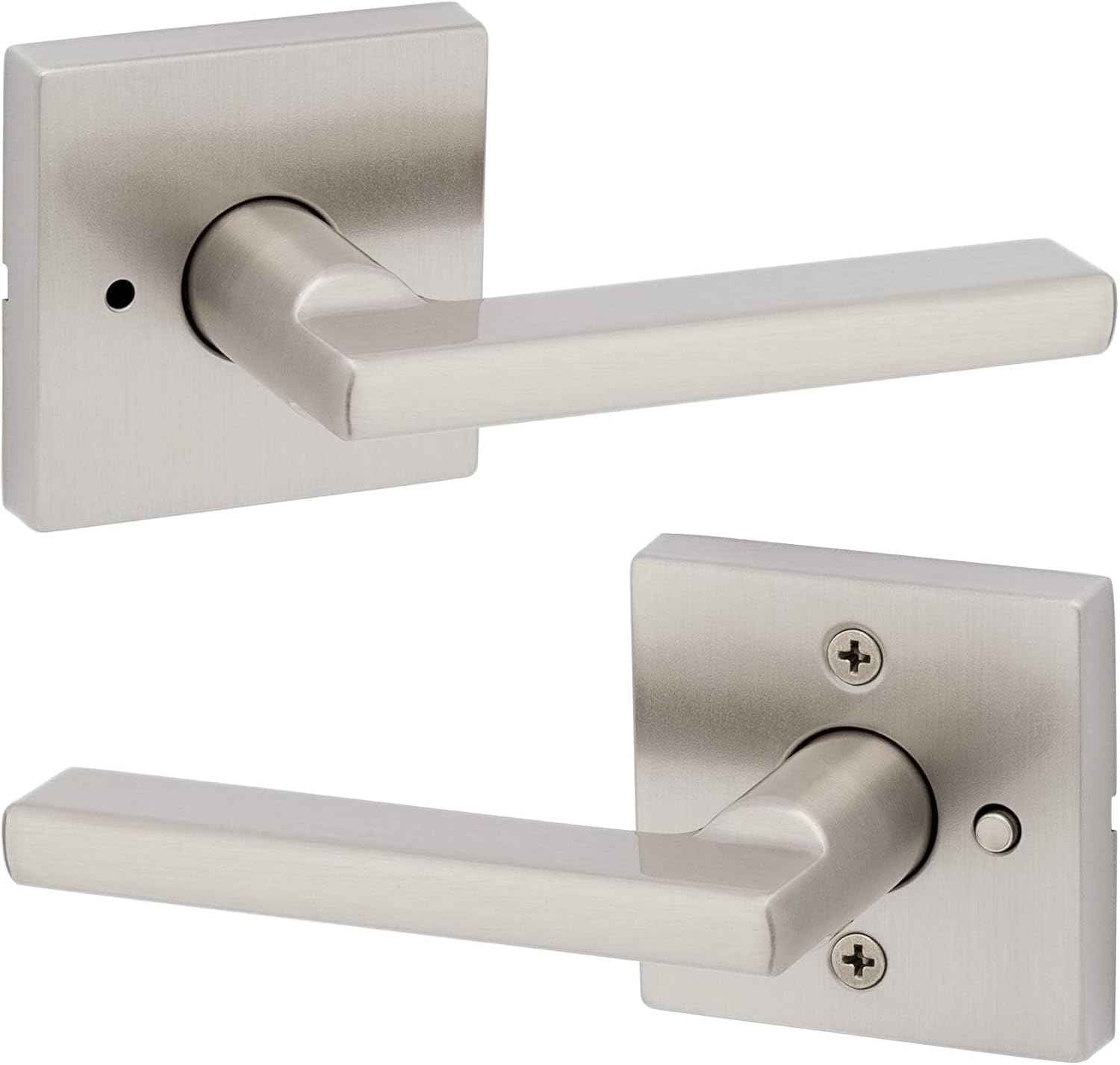

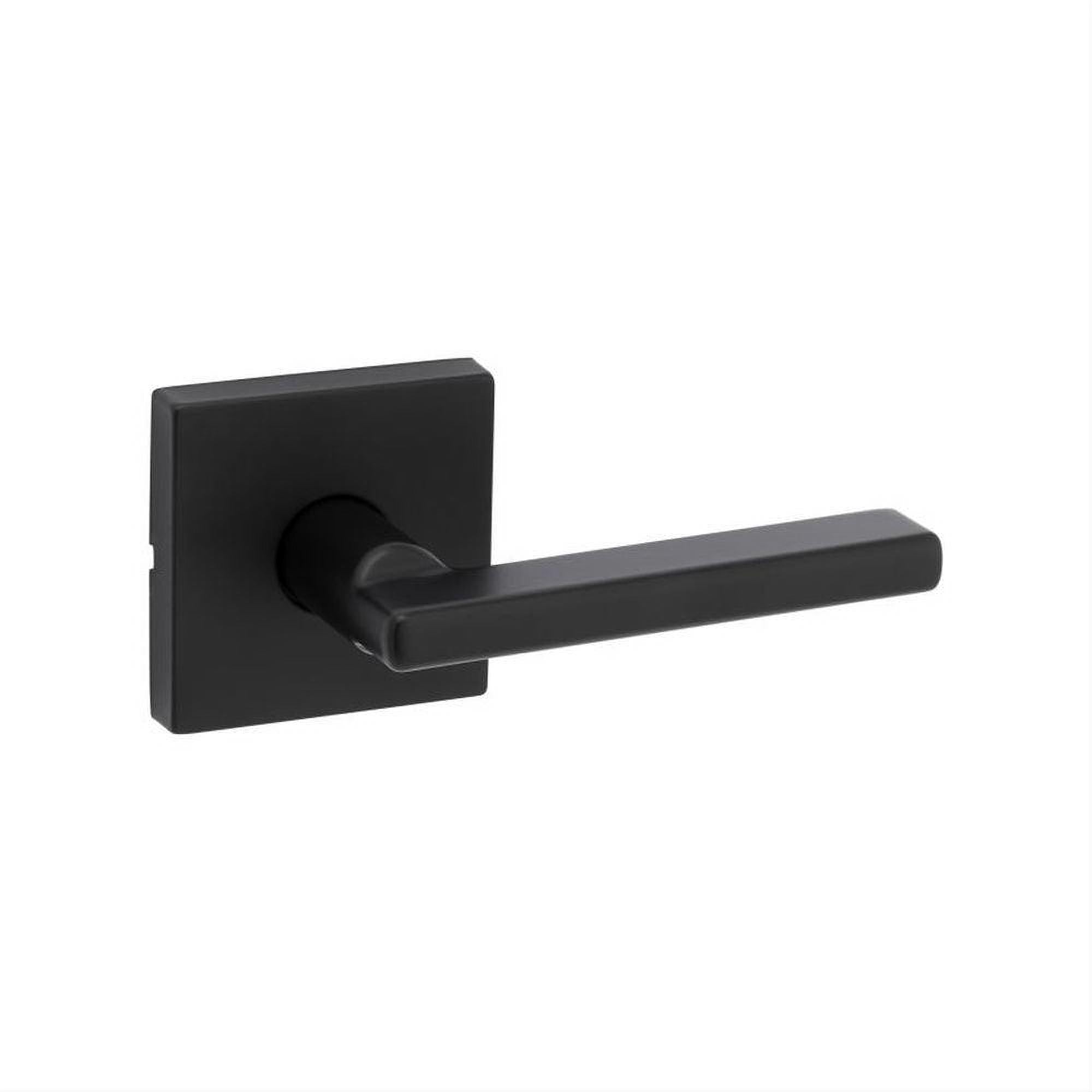

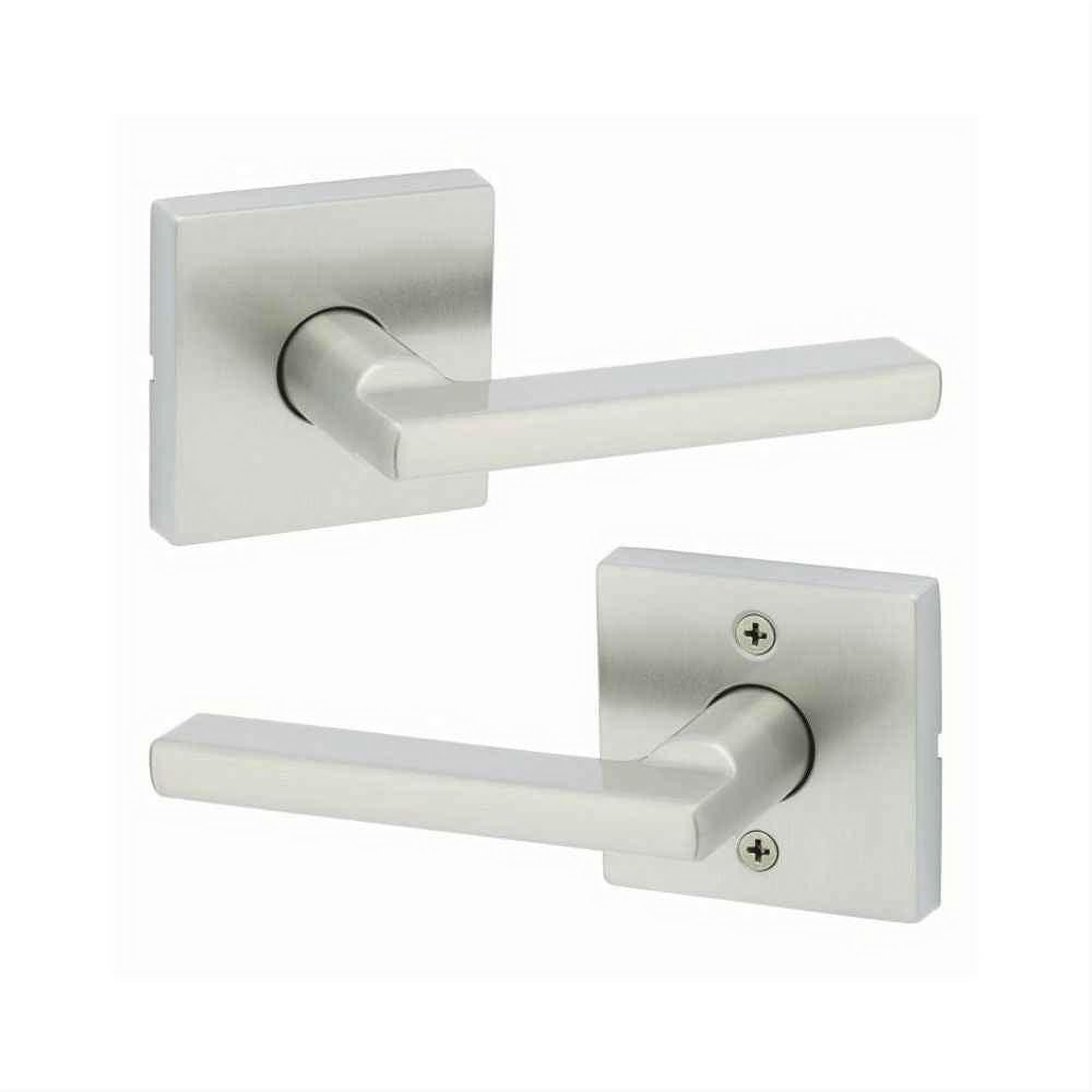

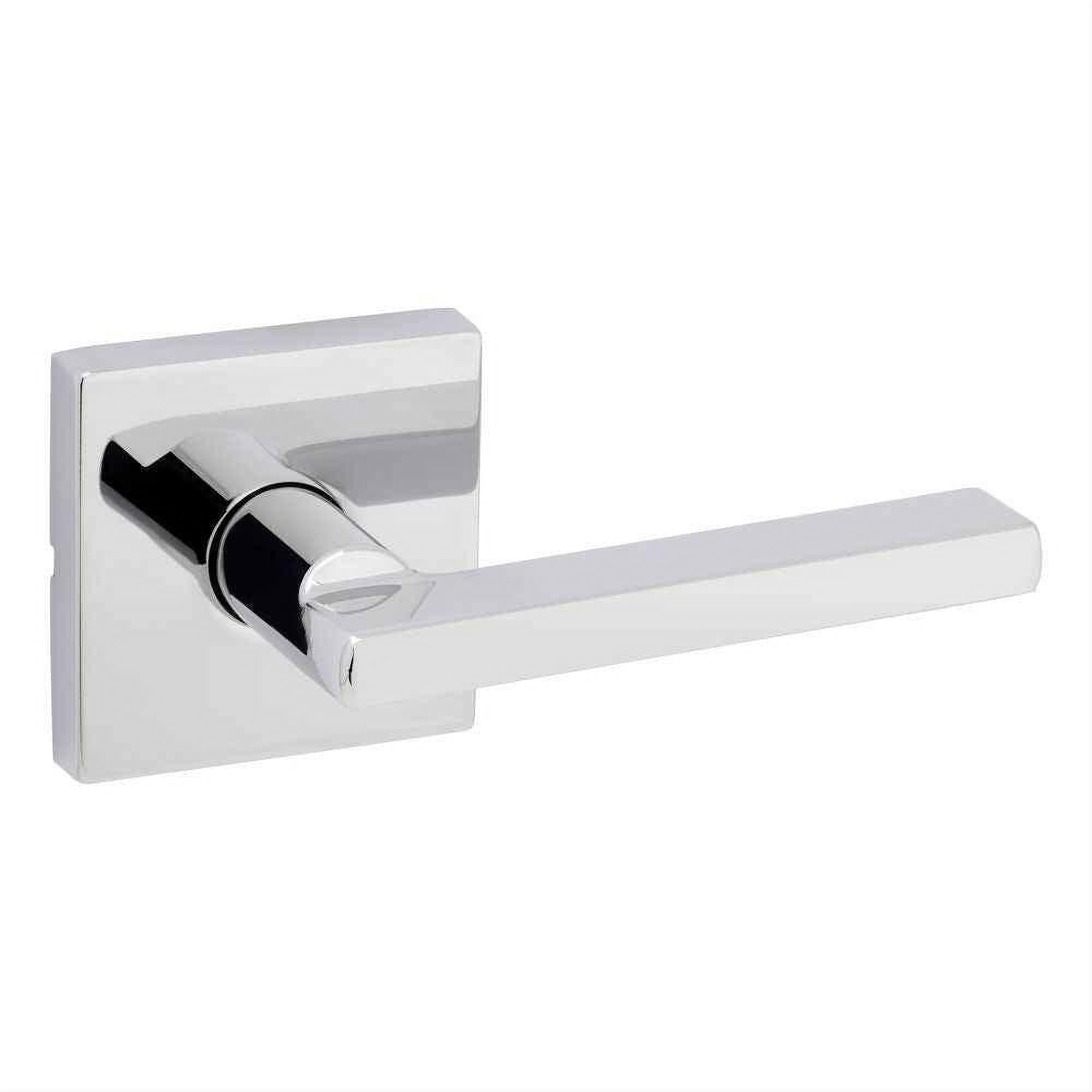

Kwikset 720HFLSQT 20 Min UL Rated Halifax Lever with Square Rose Passage Door Lock with 6AL FD Latch and RCS Strike

The Kwikset 720HFLSQT-15.FD Halifax lever is a non-locking passage set configured for a 20-minute UL-rated opening. Its square rose and reversible lever provide active latch operation from both sides.

This configuration includes the 6AL FD latch and round-corner full-lip strike identified by the product model. The complete door, frame and installation must satisfy the project fire-door requirements.

Product Details

• Manufacturer part number: 720HFLSQT-15.FD
• Model: 720HFLSQT
• Collection: Halifax
• Product type: 20-Minute Fire-Rated Passage Door Lever
• Application: Non-locking interior door requiring the listed 20-minute fire-door configuration
• Operation: Non-locking passage operation from both sides
• Included configuration: Halifax lever set with 6AL FD latch and round-corner full-lip strike
• Rose shape: Square
• Material: Zinc
• Handing: Reversible
• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Strike: Round Corner Full Lip Strike

Compatibility: Confirm the 20-minute opening requirements, door and frame labeling, 2-1/8″ cross bore, adjustable backset, handing and required installation hardware. A listed component does not by itself establish the rating of the complete opening.
